provides online condition monitoring systems that offer solutions for monitoring the status of metallic and non-metallic particles/debris present in the oil, as well as the condition and contamination levels.

Poseidon Logo 1

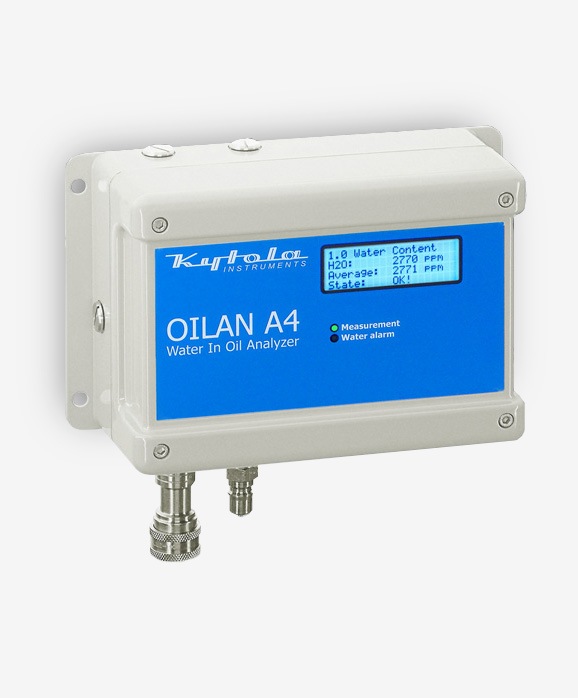

OILAN A4d

OILAN A4d
Online Moisture Measurement (Model: OILAN A4d) The only measuring device that measures absolute moisture in real time in ppm units - Mineral and synthetic oil - 4~20 mA and relay signal output Suitable for oil tanks with high moisture content such as in marine engines, steel mills, and paper mills 1. Measurement range: 0~5,000 ppm (option up to 0~20,000 ppm) 2. Measurement error: ±30 ppm (within the calibration range) 3. Temperature/pressure range: 5~60℃ / Max. 10 bar

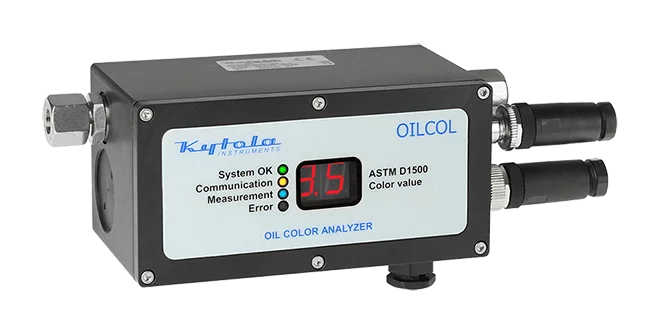

OILCOL

OILCOL
Oil Color Measurement (Model: OILCOL) Measures current oil condition according to ASTM D1500 standard - Instantly checks oil condition changes in real time - 4~20 mA output and Modbus communication Suitable for oil tanks requiring oil management due to oxidation, moisture, and additive contamination 1. Measurement range: 0.5 ~ 8.0 (ASTM D1500) 2. Measurement error: ±0.3 (ASTM D1500 scale interval is 0.5) 3. Oil viscosity: 0 ~ 500 cSt 4. Temperature/pressure range: -20 ~ 60℃ (option 70℃) / Max. 20 bar

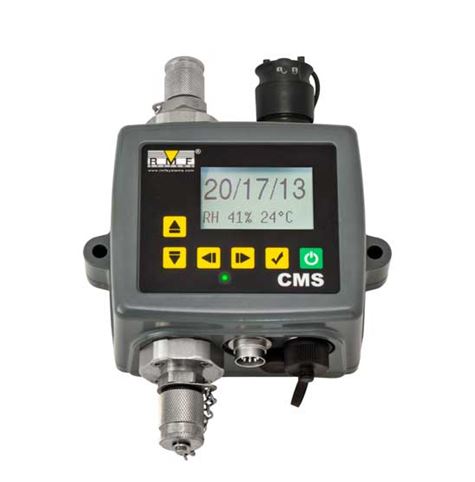

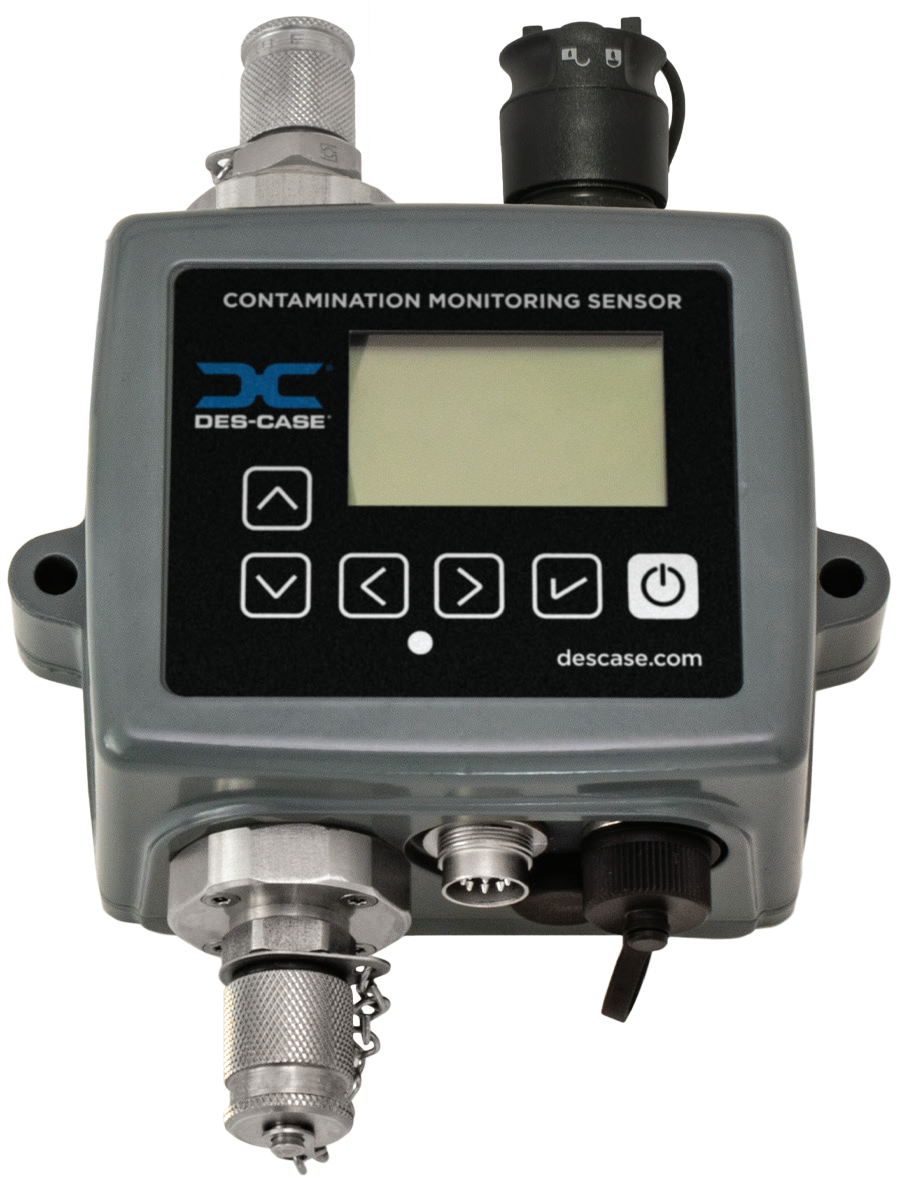

Contamination Monitoring Sensor 2

Contamination Monitoring Sensor 2
Oil Contamination Measurement (Model: Contamination Monitoring Sensor 2) Analyzes contamination in real time and displays (default setting 120 sec) - Optionally, additional moisture sensor available - RS232/485, 4~20 mA output and Modbus communication Suitable for various oil tanks and oil storage tanks 1. Measurement standards: ISO 4406, NAS 1638, SAE4059E Table ½ 2. Measurement error: ±1/2 code for 4, 6 & 14 μm 3. Oil viscosity: 0 ~ 1000 cSt 4. Flow rate: 20 ~ 400 ml/min 5. Temperature/pressure range: -25 ~ 80℃ / Max. 420 bar

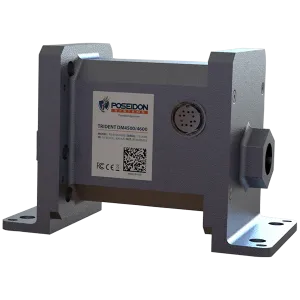

DM 4500 & 4600

DM 4500 & 4600
Metal and Non-Metal Particle/Debris Measurement (Model: DM 4500 & 4600) Monitoring of particles/debris of metal and non-metal in oil - IoT (Internet of Things) and cloud-based platform - Can monitor anytime, anywhere with POSEIDON Live software - Measures non-metal particles up to 150 μm and metal particles up to 40 μm Individually monitors particle count, size, and total mass 1. Oil flow rate: 0.95 ~ 38 l/min 2. Temperature/pressure range: -40 ~ 85℃ / Max. 10 bar

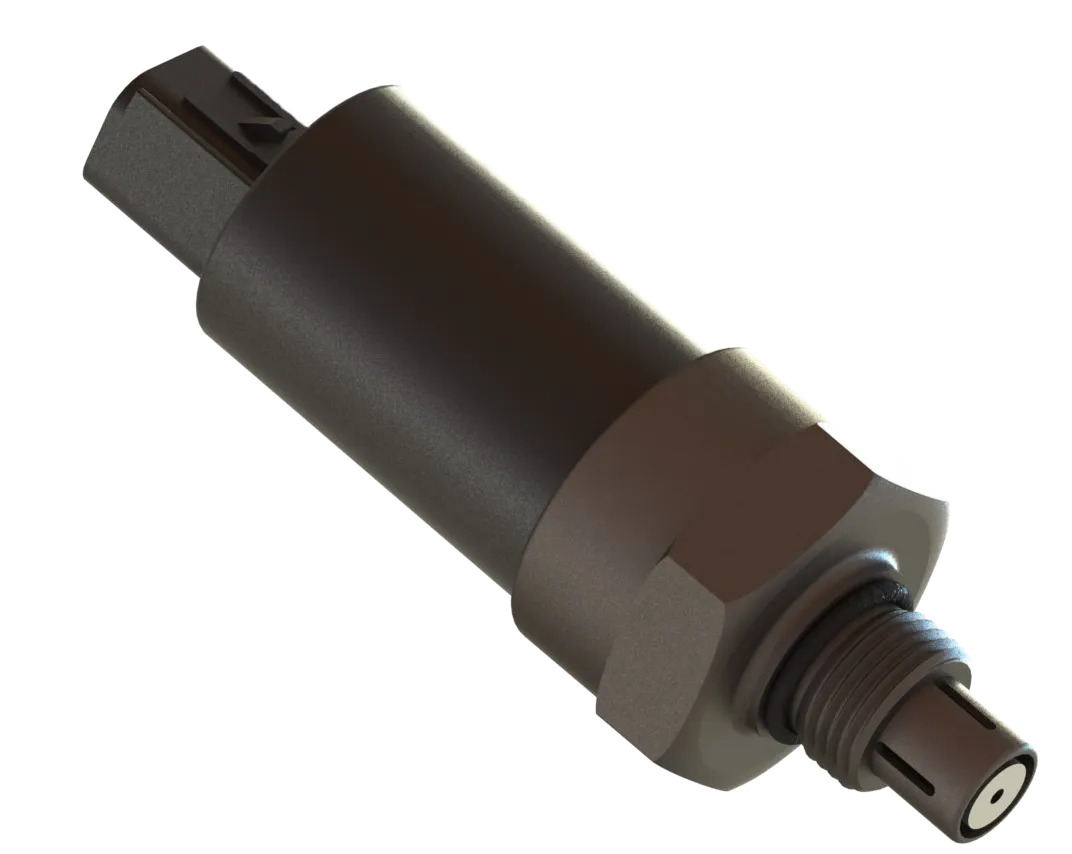

QW3100

QW3100
Oil Condition (Quality) Measurement (Model: QW3100) Measurement using electrochemical impedance spectroscopy (EIS) - Analysis of various conditions of oil - Applicable to all types of oil - IoT (Internet of Things) and cloud-based platform Can monitor anytime, anywhere with POSEIDON Live software 1. Measurement error: ±3% (*moisture sensor) 2. Communication: CAN J1939/RS485 Modbus RTU 3. Temperature/pressure range: -40 ~ 150℃

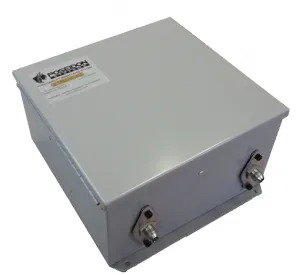

FQMS

FQMS
Oil Monitoring Center (Model: FQMS) Monitoring of oil contamination, moisture, and quality - Oil circulation using built-in oil pump - Minimizes bubble generation

CMC

CMC
Oil Monitoring Center (Model: CMC) Monitoring of metal/non-metal particles/debris, acidity, and quality - Cloud + IoT (Internet of Things)-based platform - Enables monitoring anytime, anywhere
